Additional information

Model:

KD-540

Voltage:

220V/380V

Motor:

4Kw

Frequency Converter:

4Kw

Work area:

540mm

Rotating speed:

300-800rpm

Grinding parameter quantity:

6

Water Tank Capacity:

36L

Weight:

153Kg

Description

KAIDA KD-540 Concrete Floor Grinding polishing Machine

Model NO.12T-6006T-540
Voltage220V/380V(customed)
Phase1phase/3phase
Power7.5KW(10HP)4KW(5.5HP)
Inverter7.5KW(10HP)4KW(5.5HP)
Frequency50/60HZ50/60HZ
Working Width580mm540mm
Disc Quantity126
Rotating Speed300-1800rpm300-800rpm
Water Tank Volume68L36L
Weight295KG150KG
Packing105cm*80cm*120cm85cm*65cm*130cm
This new model has upgraded the internal structure, body and color of the gearbox. The improvement of the water tank is mainly aesthetic considerations, and the machine rack is changed to the S type, which is from a practical point of view. The S-shape can be combined with the stability of the center of gravity after the machine is placed on the ground and the angle of the angle when the bottom is replaced. The internal structure of the gearbox is changed to create a more efficient drive and a more durable structure.
All-aluminum alloy gearbox and gear-driven planetary head reduce noise and impove surface flatness
The S-shaped shelf design allows for a larger angle to be seen when changing the grinding disc, and the grounding is more stable.
Another model 788-4 can easily move with power assist system, easy to carry ,save manpower.
Iron block transforms the center of gravity through the silider, not only increase the weight of the machine, but also help you lift the bottom and carry it easily.

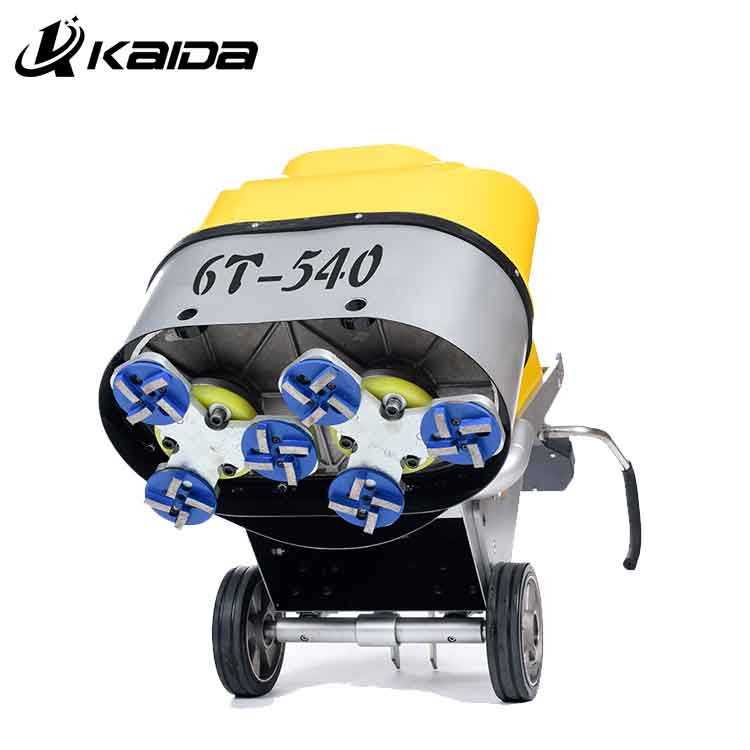

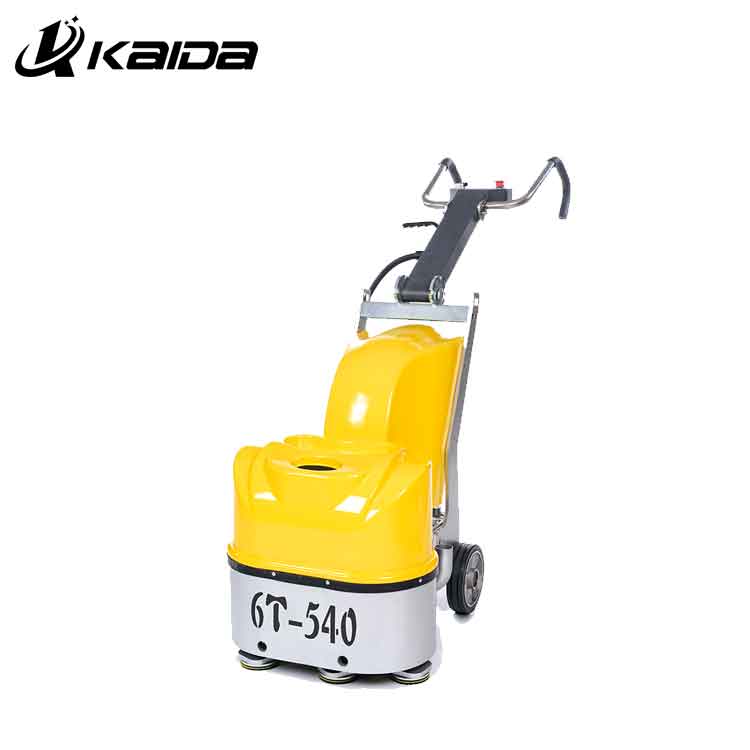

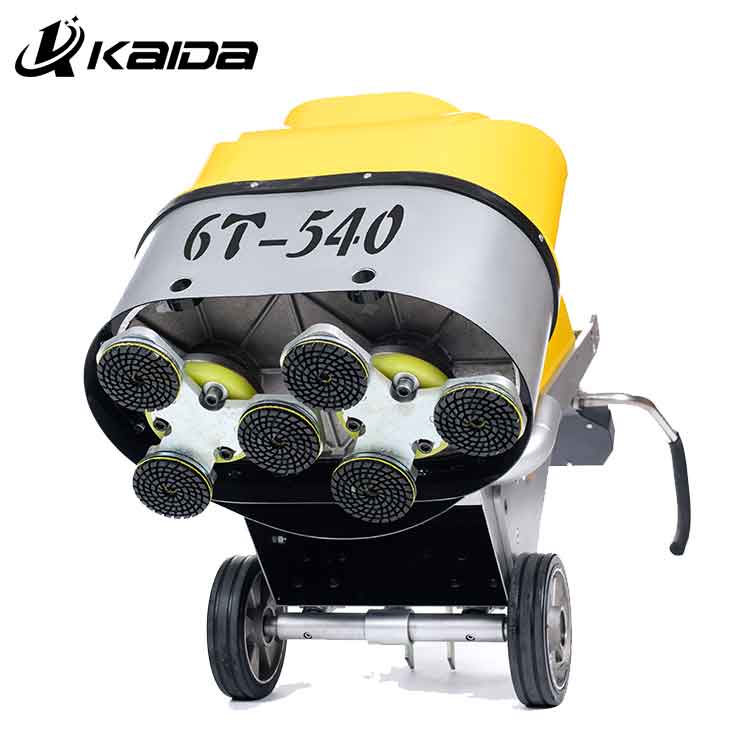

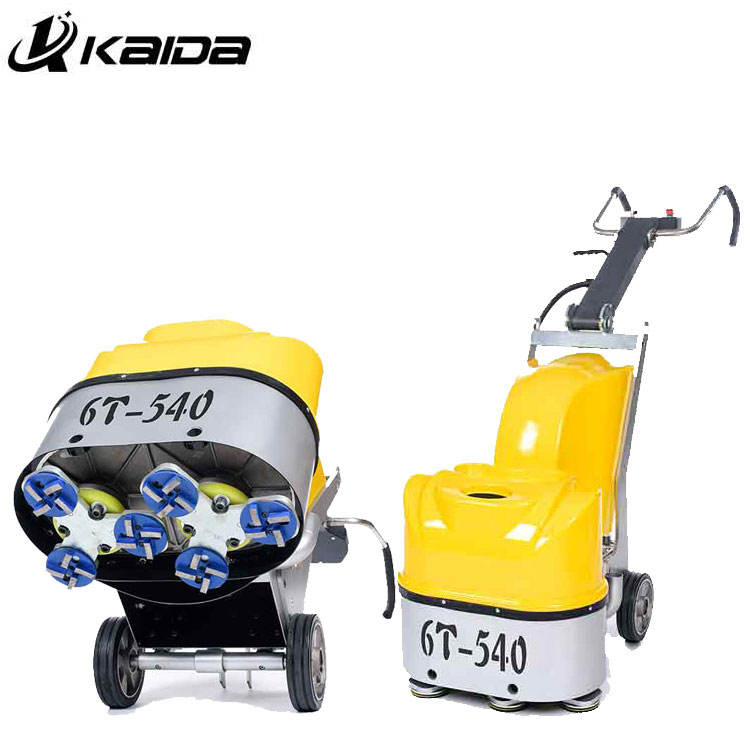

Detail Images








Additional information

Model:

KD-540

Voltage:

220V/380V

Motor:

4Kw

Frequency Converter:

4Kw

Work area:

540mm

Rotating speed:

300-800rpm

Grinding parameter quantity:

6

Water Tank Capacity:

36L

Weight:

153Kg
